Compact reverse vending systems
Space-saving solutions

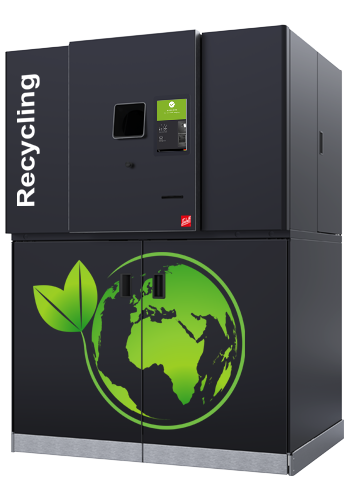

Despite compact dimensions, the SiCompact 2020 offers high collecting capacity and is designed for stand-alone or on-wall applications.
The SiCompact 2020 is the ideal device for small to medium-sized volumes of disposable containers where space is limited. The SiCompact 2020 is characterized by simple handling, a large collection capacity and a high processing speed. The non-rotating acceptance reduces leaking of residual liquids. This avoids soiling.
Omega-360°-recognition of the SiCompact 2020 frees up staff, cleanliness on site and a high level of customer satisfaction.
SiCompact 2020 variants
Features
- Reverse vending of disposable PET containers, glass bottles, cans, cups with EAN-code and beverage cartons
- Camera-based, rotationless Omega 360° container recognition in real time
- Precision scales: Weight, barcode and shape recognition, safety marking as well as recognition of full containers in the bottle acceptance area
- Acceptance speed: Up to 60 containers per minute
- Optimized shape of the coin insert ring to prevent running drips
- High-resolution 10.1' HD display with a large view angle
- Easy cleaning:
Menu-guided cleaning with animation
- With the intuitive color concept of the surfaces to be cleaned - Particularly easy to service due to full access from the front to all operating components
- Menu-guided error correction assistant
- Security concept: Software-supported and mechanical protection against tampering - DPG-security package
- Electronic lock - Opening by code
| Dimensions: | 1,880 x 1,350 x 1,130 mm (height x width x depth)* Service areas left and right: 500 mm |
| Container size: | Half Euro pallet roll containers: 840 x 600 x 800 mm (height x width x depth) |
| Required space: | 1.53 m2 |
| Weight: | Approx. 420 kg (without container) |
| Connection values: | 3L/N/PE, 400 V, 50 Hz |
| Output: | Max. 2,630 W / Standby max. 70 W |
| Operating temperature: | +5 °C to +40 °C non-condensing |
*Deviations in the housing dimensions are possible due to add-on parts and accessories.

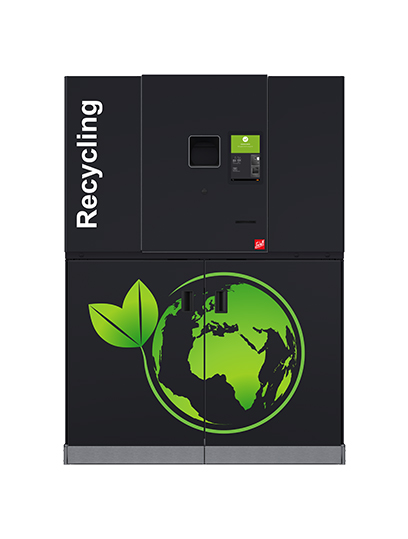

- SiCompact 2020 Mix | Mix
2x disposable, compacted
Door color
- Silk matt, black (RAL 9005)
- White aluminum silk matt (RAL 9006)
- Grey aluminum silk matt (RAL 9007)
- Further colors on request
Housing color:
- Silk matt, black (RAL 9005)
- Silk matt Graphite grey (RAL 7024)
Designs
- Branding RAL 9005 "Environment"
Optional
- Customizable branding
Features
- Reverse vending of disposable and reusable PET containers, glass bottles, cans, cups with EAN-code and beverage cartons
- Camera-based, rotationless Omega 360° container recognition in real time
- Precision scales: Weight, barcode and shape recognition, safety marking as well as recognition of full containers in the bottle acceptance area
- Acceptance speed: Up to 60 containers per minute
- Optimized shape of the coin insert ring to prevent running drips
- High-resolution 10.1' HD display with a large view angle
- Easy cleaning:
Menu-guided cleaning with animation
- With the intuitive color concept of the surfaces to be cleaned - Particularly easy to service due to full access from the front to all operating components
- Menu-guided error correction assistant
- Security concept: Software-supported and mechanical protection against tampering - DPG-security package
- Electronic lock - Opening by code
| Dimensions: | 1,880 x 1,880 x 1,514 mm (height x width x depth)* |
| Container size: | 2x Euro pallet roll containers: 975 x 1,200 x 800 mm (height x width x depth) |
| Required space: | 2.78 m2 |
| Weight: | Approx. 650 kg (without container) |
| Connection values: | 3L/N/PE, 400 V, 50 Hz |
| Output: | Max. 4,000 W / Standby max. 70 W |
| Operating temperature: | +5 °C to +40 °C non-condensing |
*Deviations in the housing dimensions are possible due to add-on parts and accessories.

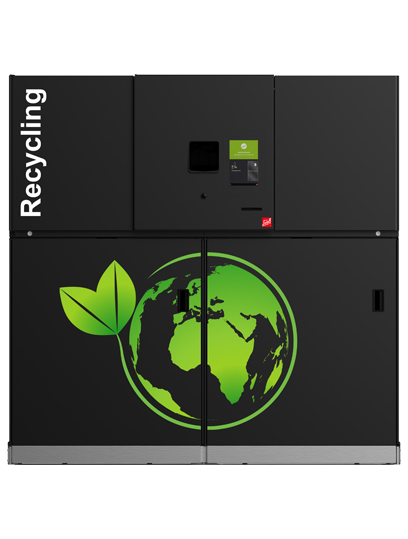

- SiCompact 2020 XL Mix | Mix
2x disposable, compacted - SiCompact 2020 XL Mix | SD
1x disposable, compacted, 1x SiDrop - SiCompact 2020 XL Sort | SD
1x disposable, compacted, can/PET sorting, 1x SiDrop - SiCompact 2020 XL Mix HD | SD
1x disposable, compacted, and HardDrop (⅔, ⅓), 1x SiDrop - SiCompact 2020 XL Mix HD | Mix
1x disposable, compacted, and HardDrop (⅔, ⅓), 1x disposable, compacted
Door color
- Silk matt, black (RAL 9005)
- White aluminum silk matt (RAL 9006)
- Grey aluminum silk matt (RAL 9007)
- Further colors on request
Housing color:
- Silk matt, black (RAL 9005)
- Silk matt Graphite grey (RAL 7024)
Designs
- Branding RAL 9005 "Environment"
Optional
- Customizable branding
Equipment
Omega 360° recognition
Omega 360° recognition
Omega 360° camera recognition system ensures reliable container acceptance even if the container is deformed or not cylindrical. The Omega 360° camera recognition system also allows for future forms of packaging if, the materials within the deposit return scheme expand.

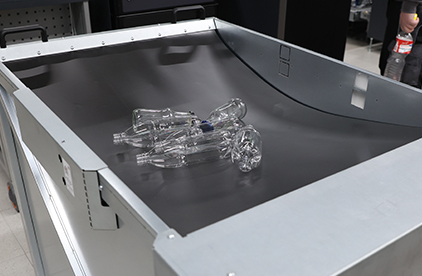

SiDrop
SiDrop
Optional SiCompact 2020 XL:
The SiDrop enables the acceptance of reusable containers and packs in very small spaces. Sensitive glass, PET or reusable containers as well as to-go cups from the food sector are carefully accepted on a flexible belt that automatically adjusts its height to the filling situation.

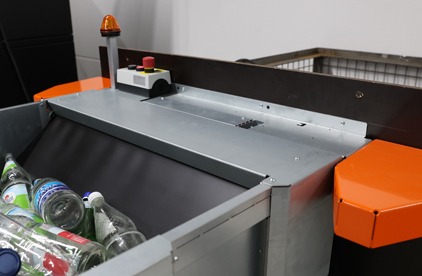

Docking station
Docking station
Optional SiCompact 2020 XL:
The SiDrop container is removed and connected to the docking station. The belt is continually raised for emptying purposes to enable ergonomic and comfortable removal of the content by employees.
